For working with Renesas controllers, I needed a simple (cheap) programmer and software.
Existing solutions for Windows was not suitable for my purposes, so I decided to write my own...

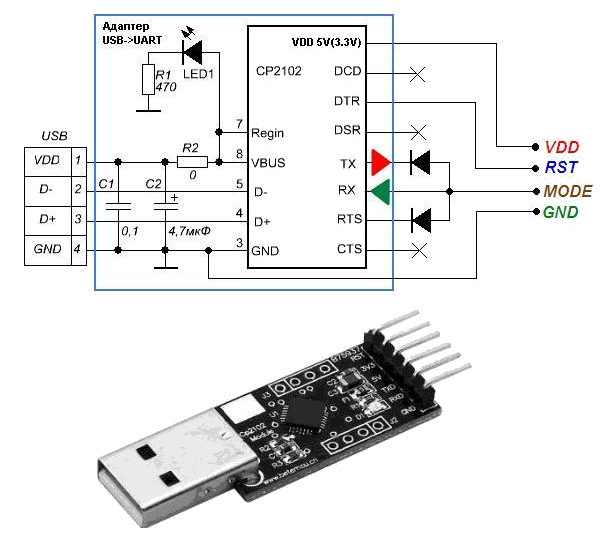

These tools were designed to work with a programmer, like below:
Allows to read/write/erase a program/data flash.
Provides a simple XML-based chips registry ( see here ).
Supports multiple programming modes: A (2 wire), B (1 wire), and 3 wire ( see manual ).
Brief list of supported chips:
- R8C/11 (R5F21114 / R5F21113 / R5F21112)
- R8C/12 (R5F21124 / R5F21123 / R5F21122)
- R8C/18 (R5F21184 / R5F21183 / R5F21182 / R5F21181)
- R8C/19 (R5F21194 / R5F21194 / R5F21194 / R5F21191)
- R8C/20 (R5F21206 / R5F21207 / R5F21208 / R5F2120A / R5F2120C)
- R8C/21 (R5F21216 / R5F21217 / R5F21218 / R5F2121A / R5F2121C)
- R8C/A1 (R5F211A4 / R5F211A3 / R5F211A2 / R5F211A1)
- R8C/B1 (R5F211B4 / R5F211B3 / R5F211B2 / R5F211B1)
- R8C/24 (R5F21244 / R5F21245 / R5F21246 / R5F21247 / R5F21248)
- R8C/25 (R5F21254 / R5F21255 / R5F21255 / R5F21257 / R5F21258)
- R8C/35A (R5F21354 / R5F21355 / R5F21356 / R5F21357 / R5F21358 / R5F2135C / R5F2135C)
-----
Price: $100 / 100 USDT
For purchase questions, please visit contact page.
